Lodio
applies the latest mold design software Auto-CAD,
Pro-E and U.G along with worldwide standard dimension
DME, HASCO to insure the accurate
design and speed up the lead-time. Other
CAD/CAM files such as STEP,
IGS, DXF, DWG are also welcomed, however, if customers use other
software, we suggest save the Solid part as STEP file. In addition,
we have developed auxiliary software - Auto-CAD
Third Party to make up the
insufficiency of the traditional software and guarantee the prompt
delivery.
Unique
auxiliary software - Auto-CAD Third Party
offers a number of enhancements in improving mold design
efficiency
Auto-CAD
Third Party:Eliminating
the gap in traditional CAD/CAM process while demanding the best of
the world Auto-CAD Third Party to accelerate mold design delivery.
|

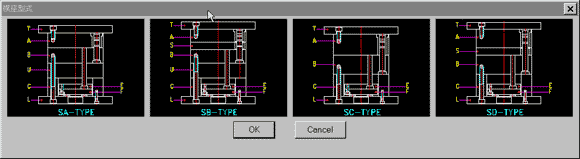

| Automatic
calculation in Mold base |
| By
inputting the mold length and width, other dimension will automatically
show up or use the engineering ruled DME, Japan-FUTABA 16 kinds of
standard mold base to save energy. Later modify is allowed. |

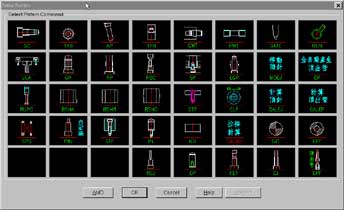

| Automatic
calculation and set up in mold standard parts. |
| With
few clicks, all the mold standard parts: guide pin, guide bush, return
pin, spring, auxiliary guide pin in ejector plate, corner pin, ejector
pin, square ejector pin, ejector bush, tie bar, support rod, stop
pin, locating ring, water channel and the connector will be set up
with the appropriate sizing and also the part number. |
| Visualized
and parameterized in marking dimension. |
-
Metric and
GB/US exchange
- Add dimension
marks.
- Refresh dimension:
unlimited eparate duplicate dimension.
- Change proportion
- Mark in detail:
by enlarging square/round dynamic drawing.
- Mark horizontal
dimension automatically.
- Mark vertical
dimension automatically
|
| Layer
management |
| Equipped
with complete and convenient functions to file, display, modify, translate,
read, and set up with your geometry drawings in Auto-Mold software. |
| Edit
Chinese and English characters dictionary |
| Integrated
with BOM edition enable users note and mark the drawings easily. The
convenient Chinese characterize version help mold shop both in Taiwan
and China region browse the drawing more easily. |
| The
mighty and multi-function command |
|
The
original CAD/CAM drawing command has been strengthened on its modification
and series connections.
|
